SKU
027B0980
Brand:

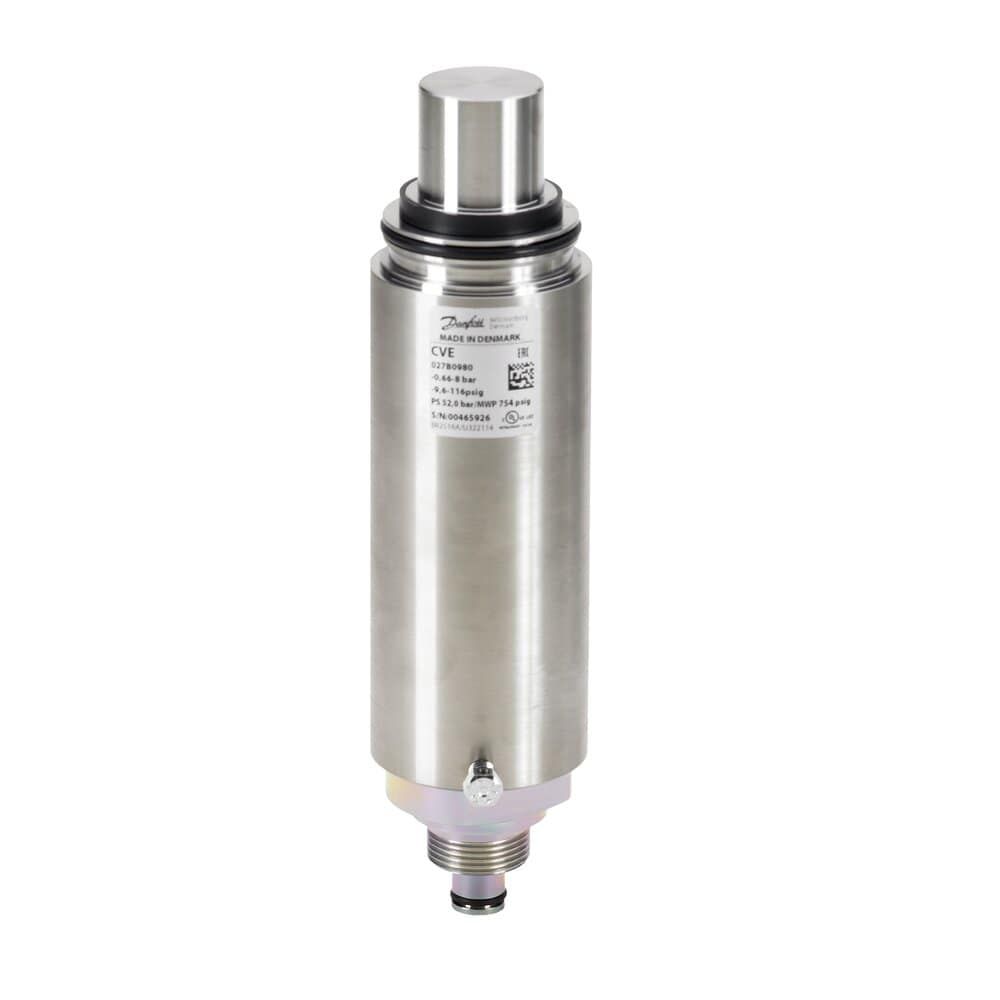

027B0980 Danfoss, Electronic pilot type CVE-L, Range: 19.5 in. Hg to 116 psig (does not include ICAD 1200A motor)
027B0980 Danfoss, Electronic pilot type CVE-L, Range: 19.5 in. Hg to 116 psig (does not include ICAD 1200A motor)
Web Price
$579.20
List Price
$791.25
List Price
$791.25
Unlock pro savings, tools, exclusive offers, and more.
Create a FREE Account
Details
Pilot valves are intended for mechanical control of a main valve and are ready for direct installation in the top cover of the main valve. Small capacities can be controlled by the pilot valve directly without a main valve when installed in the matching CVH housing.
More Information
| Weight | 5.000000 |
|---|---|
| Condition | New |
| Brand | Danfoss |
| Cv Value [gal/min] | 0.460 |
| Kv value [m³/h] | 0.400 |
| Minimum Temperature Range C | -50 °C |
| Minimum Temperature Range F | -58 °F |
| Maximum Temperature Range F | 248 °F |
| Maximum Temperature Range C | 120 °C |
| Maximum Working Pressure (PSIG) | 754 psig |
| Maximum Working Pressure (BAR) | 52.0 bar |
| Pressure Range | 19.5 in. Hg to 116 psig |
| GTIN/UPC | 5715162163597 |
| Width | 5 |
| Height | 4 |
| Length | 12 |
