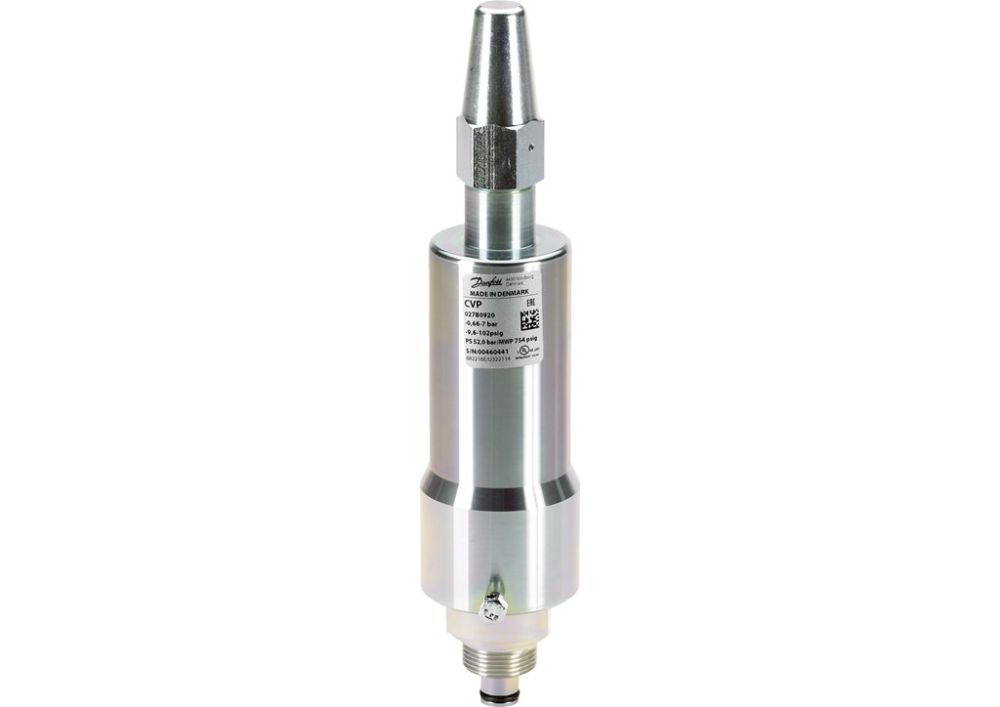

027B0920 Danfoss, CVP Pilot valve (LP) 0, 7 bar

Pilot valves are intended for mechanical control of a main valve and are ready for direct installation in the top cover of the main valve. Small capacities can be controlled by the pilot valve directly without a main valve when installed in the matching CVH housing.Small capacities can be controlled by the pilot valve directly without a main valve when installed in the matching CVH housing.Features:Applicable to HCFC, non flammable HFC, R717 (Ammonia) and R744 (CO2). The use of Pilots with flammable hydrocarbons is not recommended.Extremely accurate pressure and temperature control.The pilot valves can be screwed directly into the main valve, thus avoiding the necessity of welding, soldering and separate pilot lines.The pilot valves can be mounted directly in the ICS, PM or ICF valve or it can be connected via an external pilot line and a CVH housing.All pilot valves can be used on all sizes of main valves.Several pilot valves can be connected in series or in parallel to provide many functions in the same ICS or ICF valve.All pilot valves are delivered with gaskets.Refrigerants:R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507A
