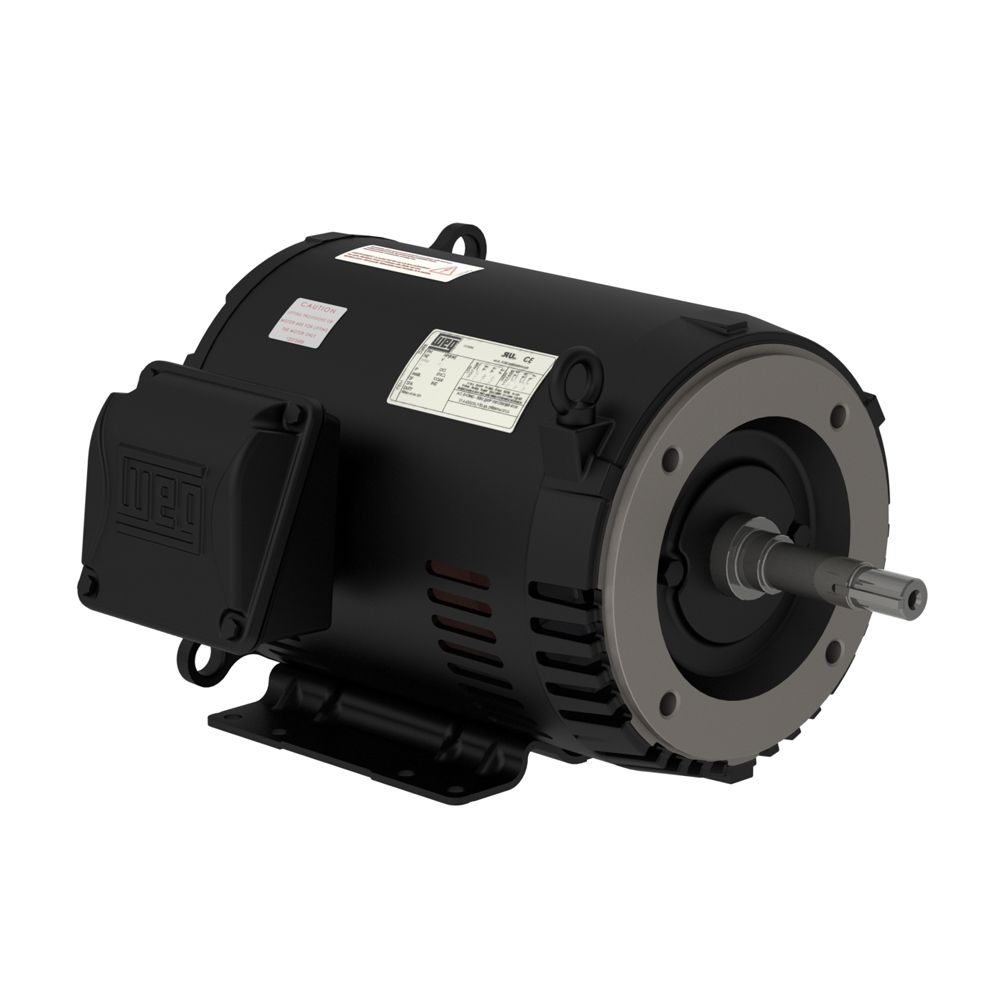

20HP, 1800RPM, 3PH, 575V, 254/6JM Frame, Standard Flange, Foot Mount, OPEN, Close Coupled Pump Motor w/Shaft Grounding Ring.
Web Price
$2,833.86
Unlock pro savings, tools, exclusive offers, and more.
Create a FREE Account
Details
The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.
More Information
| Weight | 213.840000 |
|---|---|
| Condition | New |
| Brand | WEG |
| Standard | NEMA MG-1 |
| Frequency | 60 Hz |
| Voltage | 575 V |
| Number of Poles | 4 |
| Synchronous Speed | 1800 rpm |
| Output Rating | 20 HP |
| Mounting | Foot-mounted (F-1) |
| Flanges | Flange C |
| Terminal Box | Left position |
| Enclosure | IC01 - ODP |
