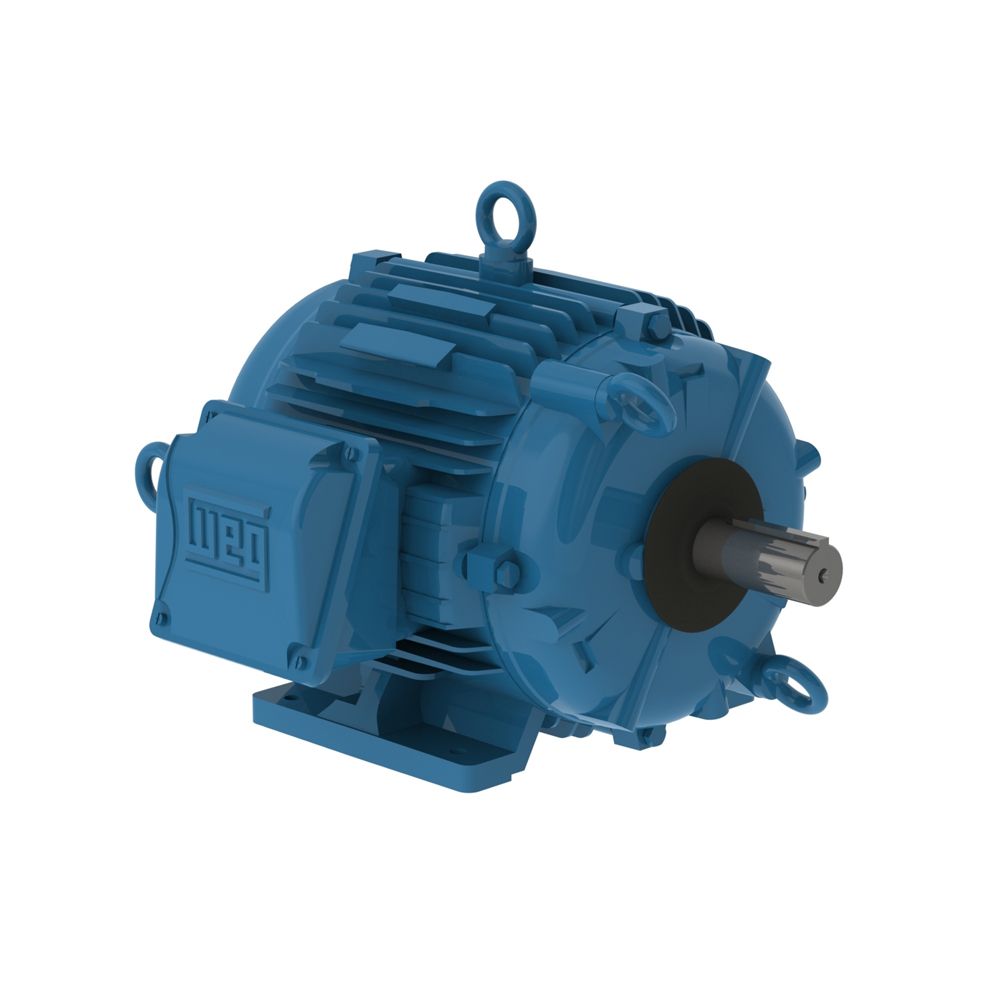

W22 Cooling Tower NEMA Premium Efficiency 20 HP 6P 284/6T 3Ph 575 V 60 Hz IC410 - TEAO - Foot-mounted
Web Price
$4,815.35
Details
These TEFC motors are built according to NEMA standard, and designed to operate with 100% of humidity in the most corrosive environments. All the line is certified for use with frequency inverter, and can operate in both the horizontal and vertical position. The Cooling Tower was tested according to the IEEE 112, method B, and it has efficiency values certified by UL (CSA C390). They ensure high efficiency levels with high torque, even at low speeds.
More Information
| Weight | 441.340000 |
|---|---|
| Condition | New |
| Brand | WEG |
| Standard | NEMA MG-1 |
| Frequency | 60 Hz |
| Voltage | 575 V |
| Number of Poles | 6 |
| Degree of Protection | IP55 |
| Synchronous Speed | 1200 rpm |
| Output Rating | 20 HP |
| Mounting | Foot-mounted (F-1) |
| Flanges | Without Flanges |
| Terminal Box | Left position |
| Enclosure | IC410 - TEAO |
