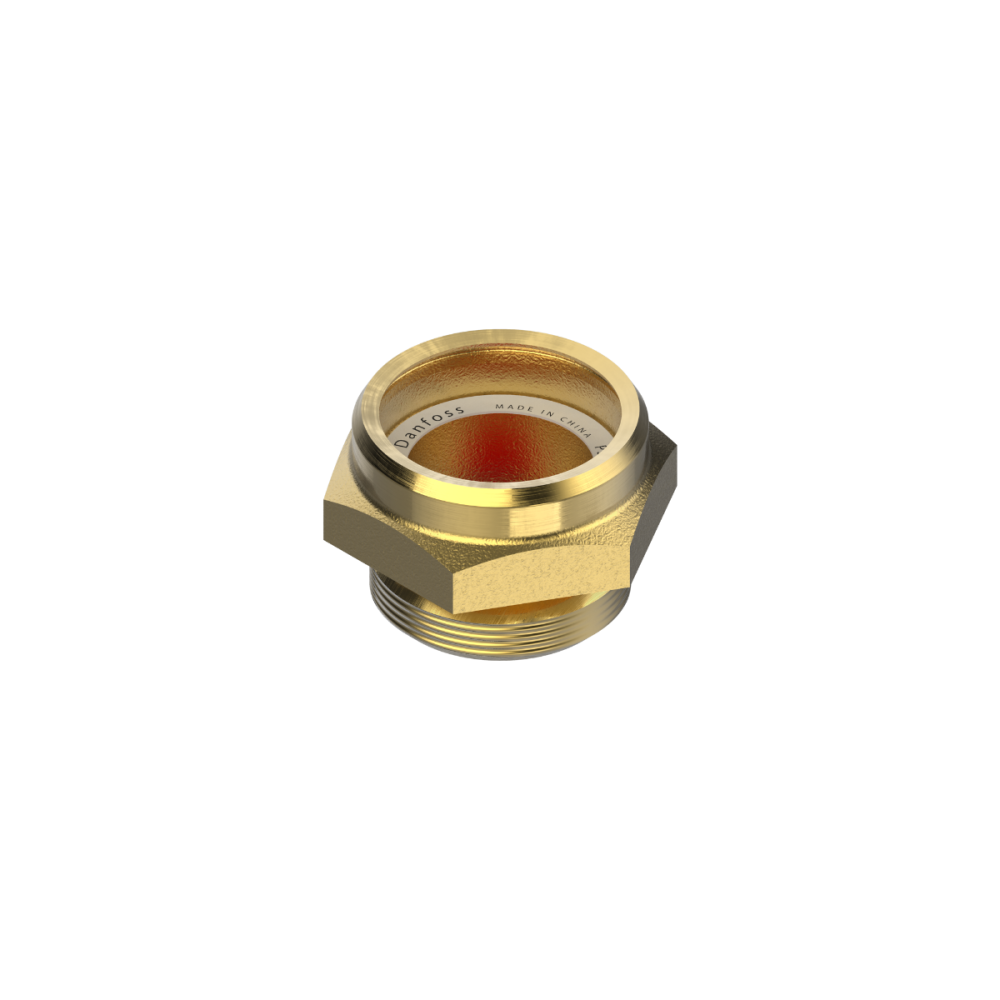

014-0004 Danfoss 3/4, G,Sight glass socket, Type: SGR

Danfoss sight glasses, type SG/SGP, are installed after the filter drier in the liquid line of refrigerating systems and in the compressor by using socket type, in order to observe property changes of the refrigerant (liquid/vapor) and to indicate the moisture level by colors.

Features:

• Available with the fare, solder, and socket connections, with and without moisture indicators.
• Large viewing window for better visibility
• High precision color indicator
• Provides accurate identification of system conditions
• Easy to indicate liquid and oil level by float ball of socket type
• Good corrosion resistance by 2000 hours salt spray for brass material according to ASTM B117 requirement
• UL approval conforms to Pressure Equipment Directive 2014/68/EU
