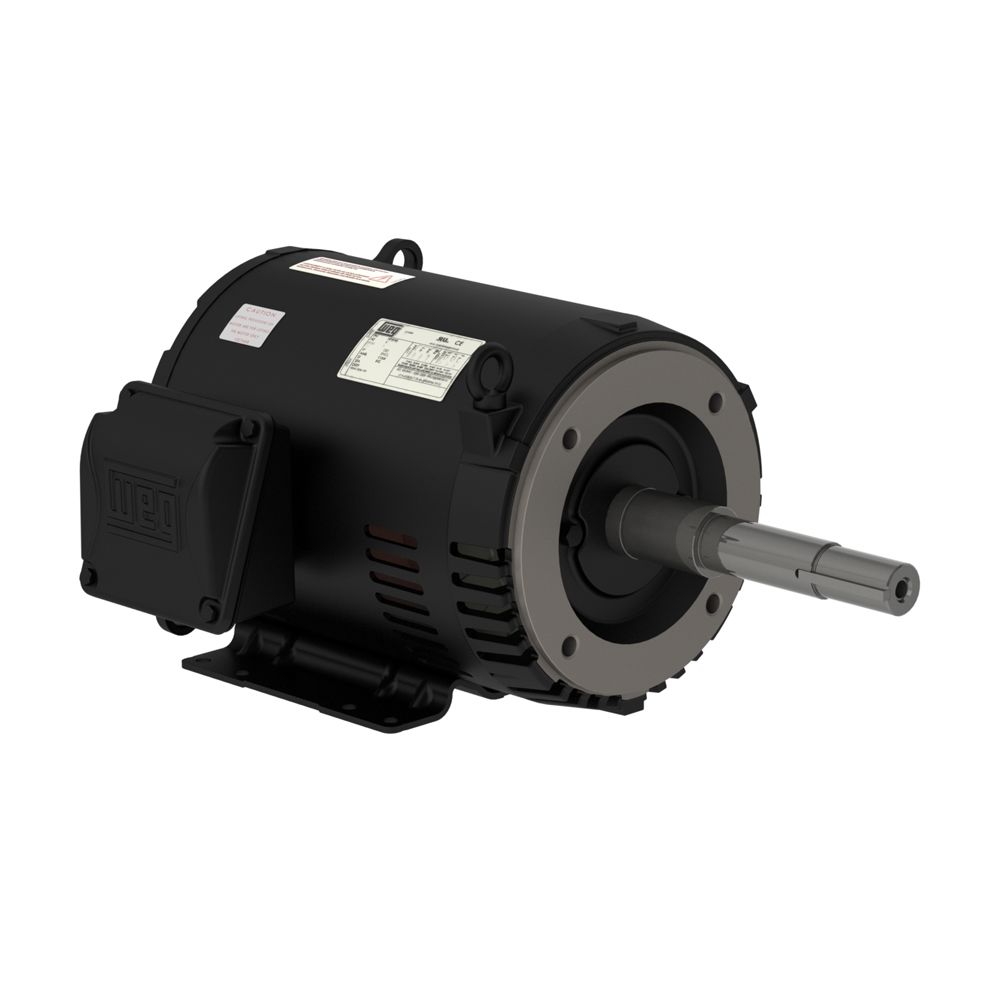

10HP, 3600RPM, 3PH, 575V, 213/5JP Frame, Standard Flange, Foot Mount, OPEN, Close Coupled Pump Motor w/Shaft Grounding Ring.
List Price
$1,489.00
List Price
$1,489.00
Web Price
$1,427.15
Details
The W01 "JP" (gasket) motors were especially developed for application on pumps with direct coupling. They maximum performance and robustness in environments where dirt and humidity are minimal.
More Information
| Weight | 126.380000 |
|---|---|
| Condition | New |
| Brand | WEG |
| Standard | NEMA MG-1 |
| Frequency | 60 Hz |
| Voltage | 575 V |
| Number of Poles | 2 |
| Synchronous Speed | 3600 rpm |
| Output Rating | 10 HP |
| Mounting | Foot-mounted (F-1) |
| Flanges | Flange C |
| Terminal Box | Left position |
| Enclosure | IC01 - ODP |
