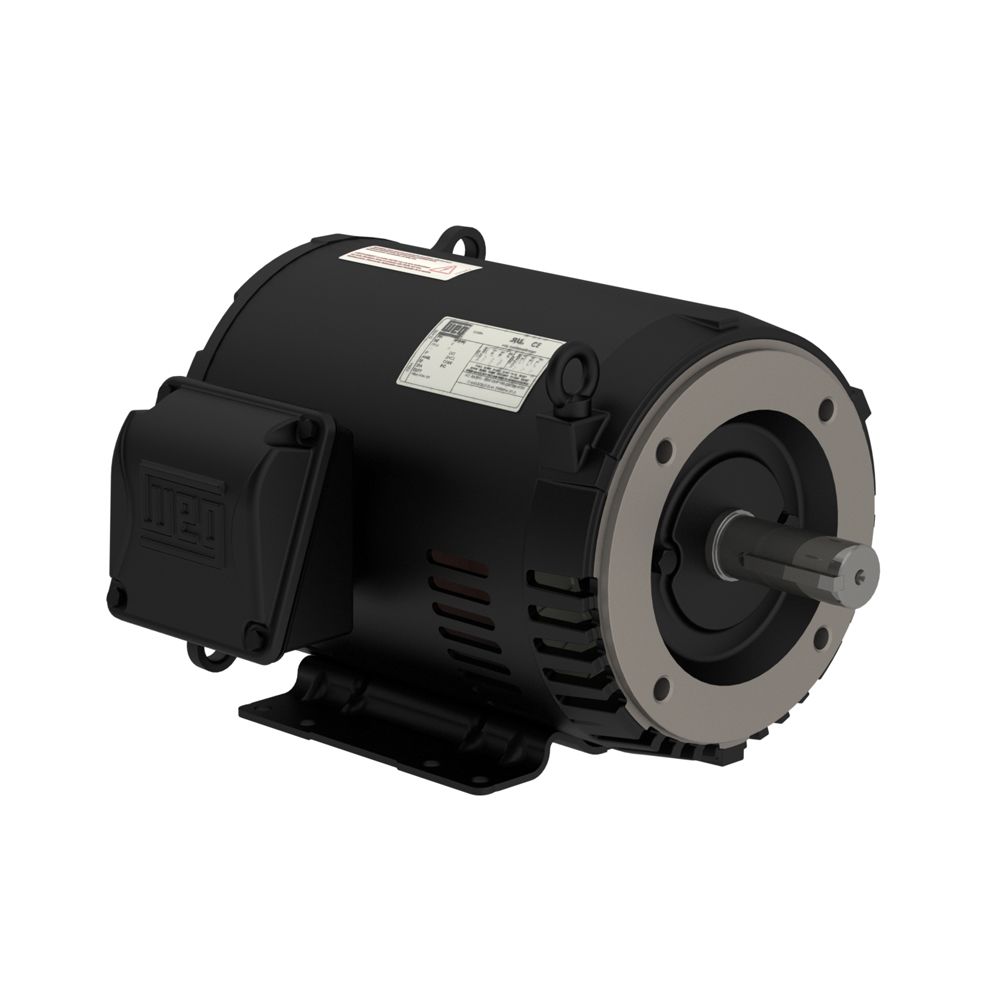

10HP, 3600 RPM, 3PH, 230V/460V, 213/5TC Frame, C-Face Flange, Foot Mount, Open, Aegis Shaft Grounding Ring Motor
List Price
$1,332.00
List Price
$1,332.00
Web Price
$1,276.68
Details
W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution. These motors are supplied with Aegis® bearing protection ring to avoid current flow along the motor shaft, across the bearing and return to the frame thus preventing premature bearing wear and failure due to electric currents flowing through them.
More Information
| Weight | 135.630000 |
|---|---|
| Condition | New |
| Brand | WEG |
| Standard | NEMA MG-1 |
| Frequency | 60 Hz |
| Voltage | 230/460//190-220/380-415 V |
| Number of Poles | 2 |
| Synchronous Speed | 3600 rpm |
| Output Rating | 10 HP |
| Mounting | Foot-mounted (F-1) |
| Flanges | Flange C |
| Terminal Box | Left position |
| Enclosure | IC01 - ODP |
