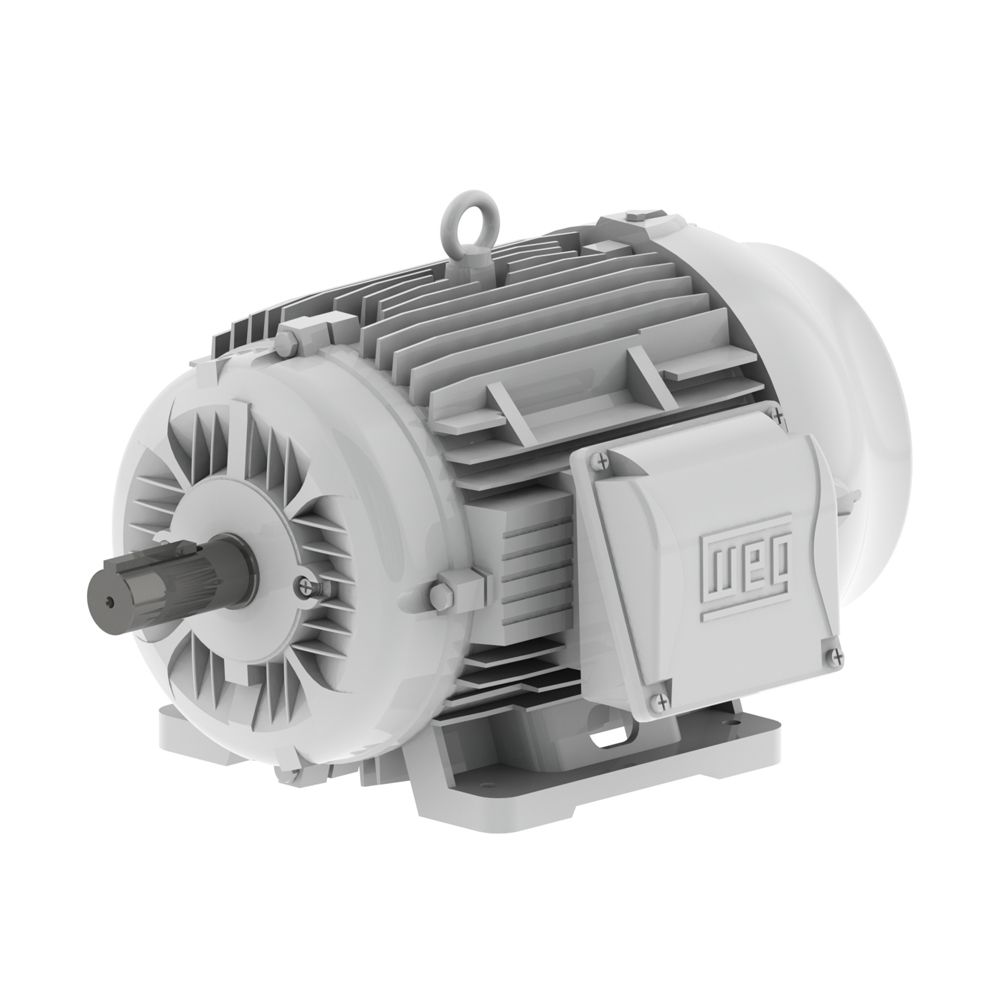

10HP, 900 RPM, 3PH, 208V,230V,460V, 284/6T Frame, Standard Flange, Foot Mount, TEFC, Oil Well Pump Motor
Web Price
$3,616.78
Details
These special motors have the high slip and high torque that oil well beam pumping units demand. W22 Design D motors are requested on specifications for most major oil companies around the world as a result of their long lasting performance, low purchase and maintenance cost.
More Information
| Weight | 420.680000 |
|---|---|
| Condition | New |
| Brand | WEG |
| Standard | NEMA MG-1 |
| Frequency | 60 Hz |
| Voltage | 208-230/460 V |
| Number of Poles | 8 |
| Degree of Protection | IP55 |
| Synchronous Speed | 900 rpm |
| Output Rating | 10 HP |
| Mounting | Foot-mounted (F-2) |
| Flanges | Without Flanges |
| Terminal Box | Right position |
| Enclosure | IC411 - TEFC |
