009L8052 Danfoss GBC 12s Ball Valve Cap Strap M/30

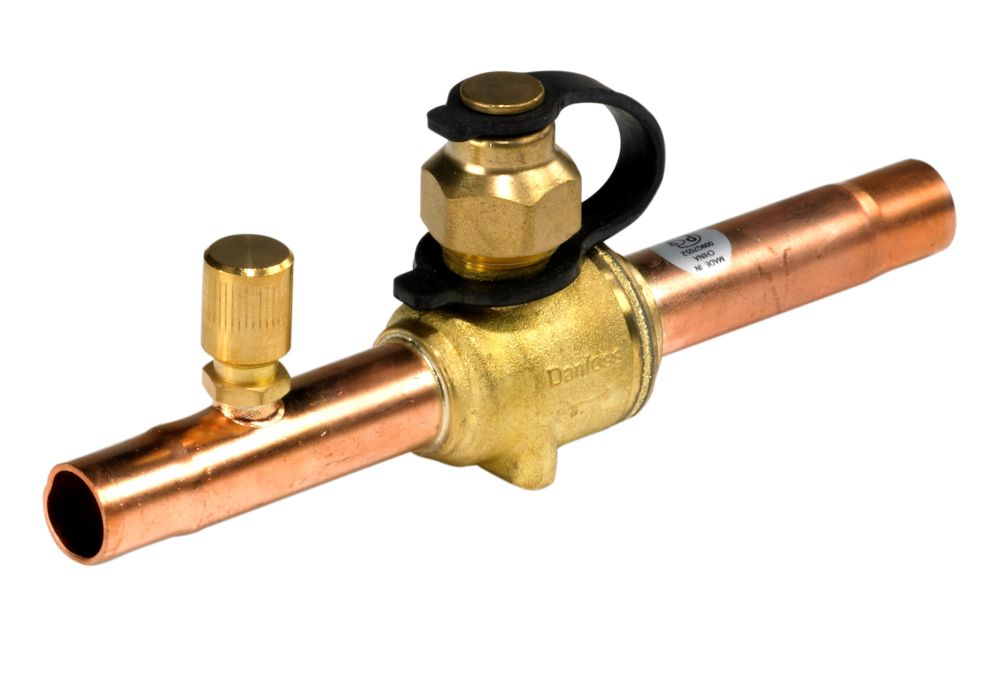

Danfoss GBC 12s shut-off ball valve with 1/2 in solder ODF connections. Bi-flow design with a Schrader access port, rated to 650 psig.

Add to Quote to request pricing

Qty:

Details

GBC 12s Ball Valve Cap Strap M/30

More Information

More Information
Weight	0.510000
Condition	New
Brand	Danfoss
EAN	5702428514729
Body Material	Brass
Body	Brass
Cv Value [gal/min]	15.200 gal/min
Kv value [m³/h]	13.170 m³/h
Minimum Temperature Range C	-40 °C
Minimum Temperature Range F	-40 °F
Maximum Temperature Range F	212 °F
Maximum Temperature Range C	100 °C
Connection Size	1/2 in
Connection Type	Solder, ODF
Inlet Connection Type	Solder, ODF
Refrigerants	R1234yf; R1234ze(E); R134a; R22/R407C; R290; R32; R404A/R507A; R407A; R407F; R407H; R410A; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R513A; R515B; R516A
Maximum Working Pressure (PSIG)	650 psig
Maximum Working Pressure (BAR)	45.0 bar
Valve Material	Brass
Width	3
Height	3
Length	8
