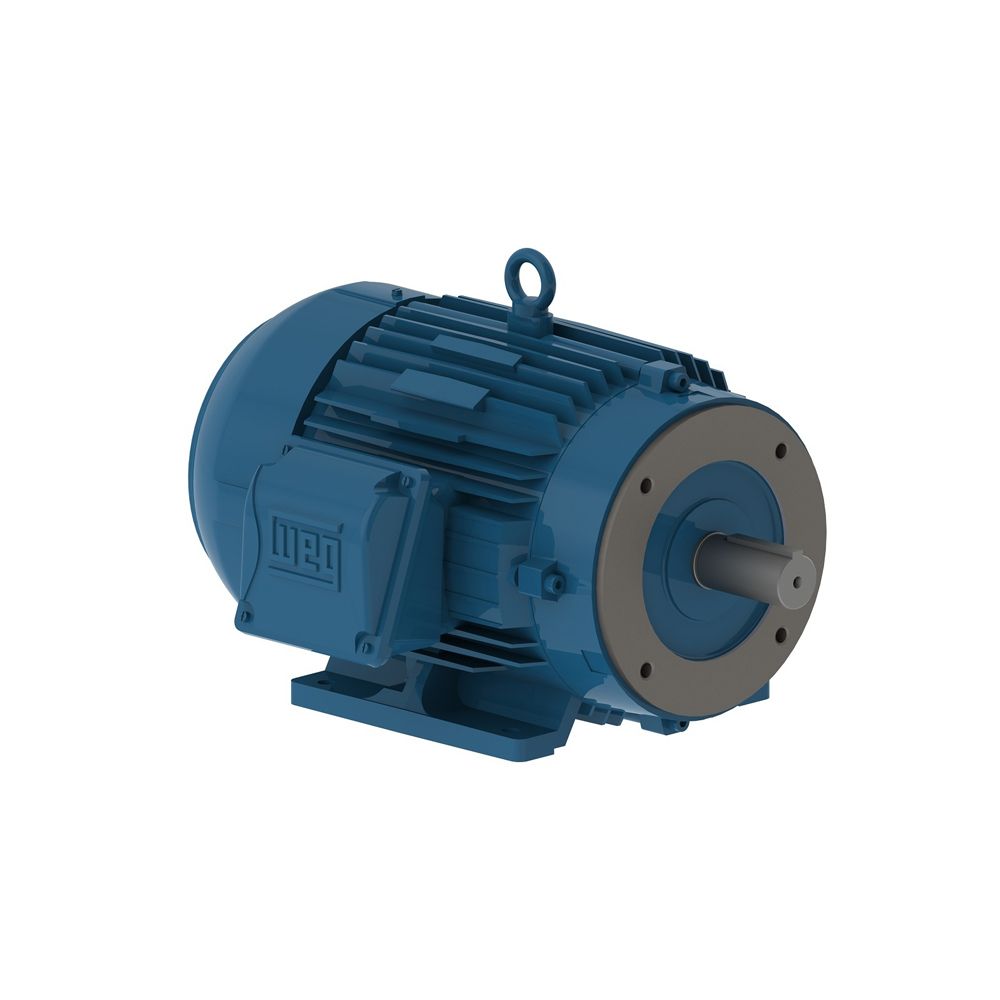

3HP, 1200RPM, 3PH, 208V;230V;460V, 213TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor.
List Price
$1,180.00
List Price
$1,180.00
Web Price
$1,130.98
Details
Aluminum frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.
More Information
| Weight | 165.790000 |
|---|---|
| Condition | New |
| Brand | WEG |
| Standard | NEMA MG-1 |
| Frequency | 60 Hz |
| Voltage | 230/460//380 V |
| Number of Poles | 6 |
| Degree of Protection | IP55 |
| Synchronous Speed | 1200rpm |
| Output Rating | 3 HP |
| Mounting | Foot-mounted (F-1) |
| Flanges | C-Face Flange |
| Terminal Box | Left position |
| Enclosure | IC411-TEFC |
