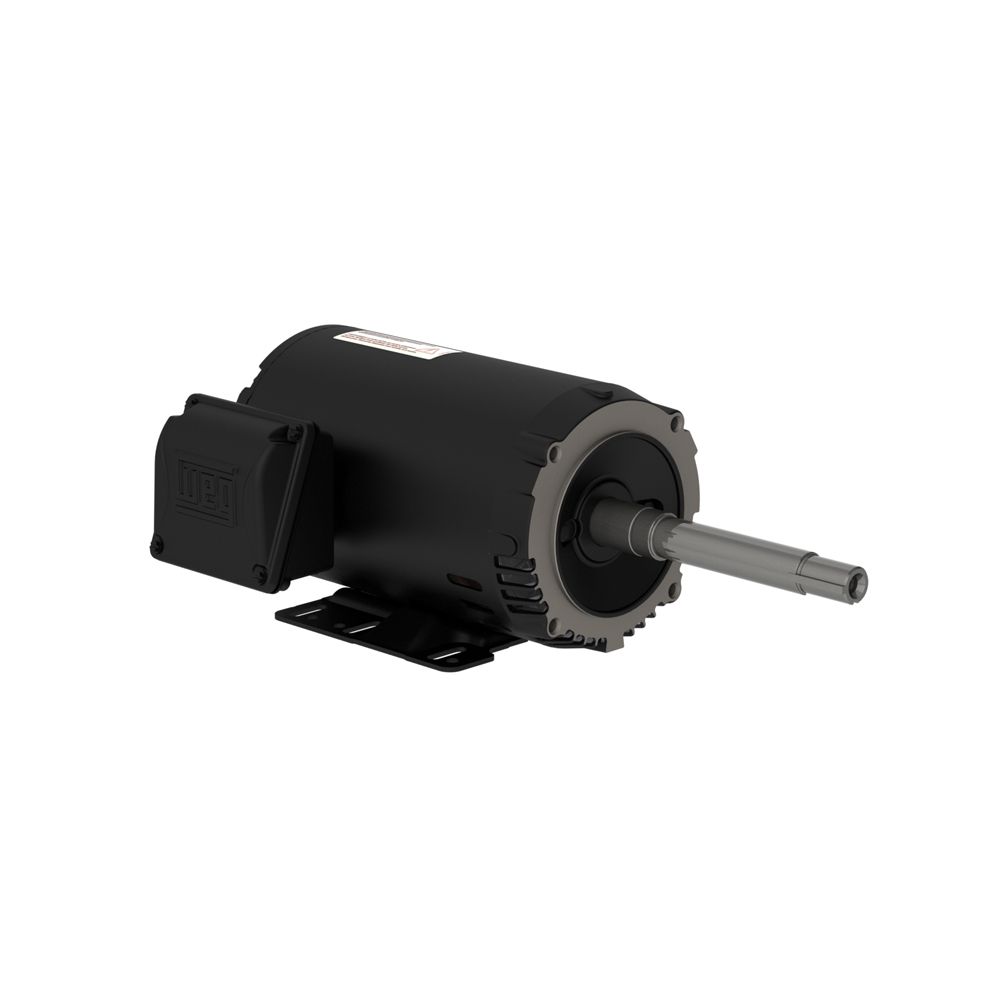

2HP, 3600RPM, 3PH, 208V;230V;460V, 143/5JP Frame, Standard Flange, Foot Mount, OPEN, Close Coupled Pump Motor w/Shaft Grounding Ring.
Web Price
$802.07
Details
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.
More Information
| Weight | 39.740000 |
|---|---|
| Condition | New |
| Brand | WEG |
| Standard | NEMA MG-1 |
| Frequency | 60 Hz |
| Voltage | 230/460//190-220/380-415 V |
| Number of Poles | 2 |
| Synchronous Speed | 3600rpm |
| Output Rating | 2 HP |
| Mounting | Foot-mounted (F-1) |
| Flanges | C-Face Flange |
| Terminal Box | Left position |
| Enclosure | IC01-ODP |
