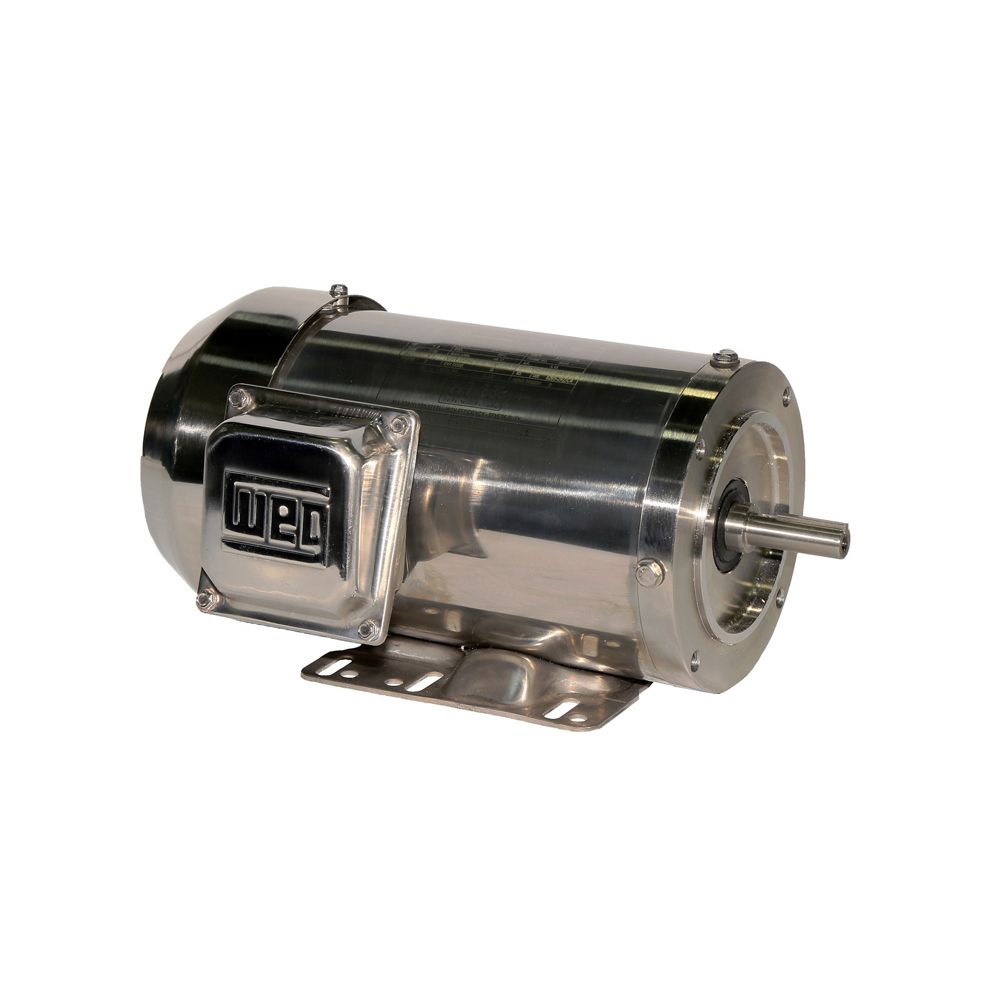

2HP, 3600 RPM, 3PH, 208V,230V,460V, 56HC Frame, C-Face Flange, Foot Mount, TEFC, Washdown Duty Motor
Web Price
$1,241.20
Details
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.
More Information
| Weight | 47.000000 |
|---|---|
| Condition | New |
| Brand | WEG |
| Standard | NEMA MG-1 |
| Frame | 56C |
| Frequency | 60 Hz |
| Voltage | 230/460 V |
| Number of Poles | 2 |
| Degree of Protection | IP56 |
| Synchronous Speed | 3600rpm |
| Output Rating | 2 HP |
| Mounting | Foot-mounted (F-1) |
| Flanges | C-Face Flange |
| Terminal Box | Left position |
| Enclosure | TEFC |
| Efficiency | NEMA Premium Efficiency |
