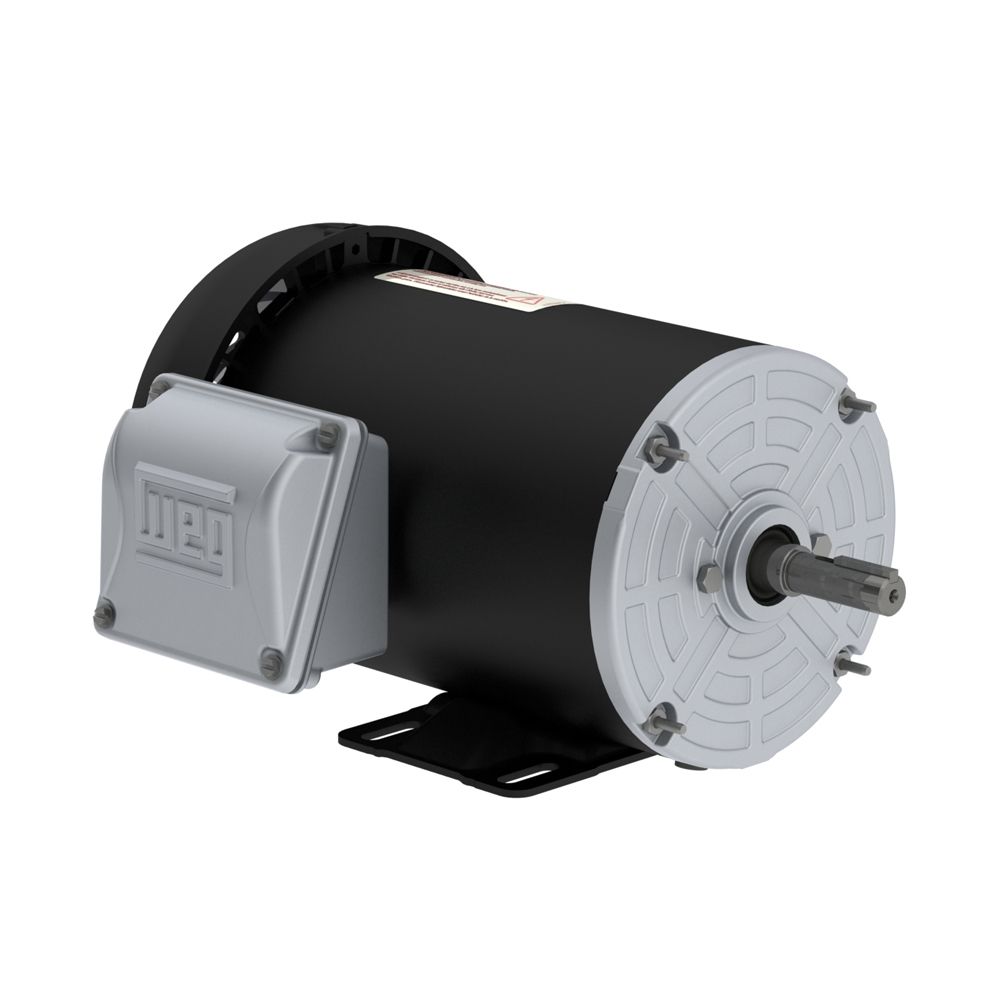

1HP, 3600 RPM, 3PH, 230V/460V, W56 Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor
Web Price
$446.88
Details
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for the severest applications.
More Information
| Weight | 23.800000 |
|---|---|
| Condition | New |
| Brand | WEG |
| Standard | NEMA MG-1 |
| Frequency | 60 Hz |
| Voltage | 230/460//190-220/380-415 V |
| Number of Poles | 2 |
| Degree of Protection | IP55 |
| Synchronous Speed | 3600 rpm |
| Output Rating | 1 HP |
| Mounting | Foot-mounted (F-1) |
| Flanges | Without Flanges |
| Terminal Box | Left position |
| Enclosure | IC411 - TEFC |
