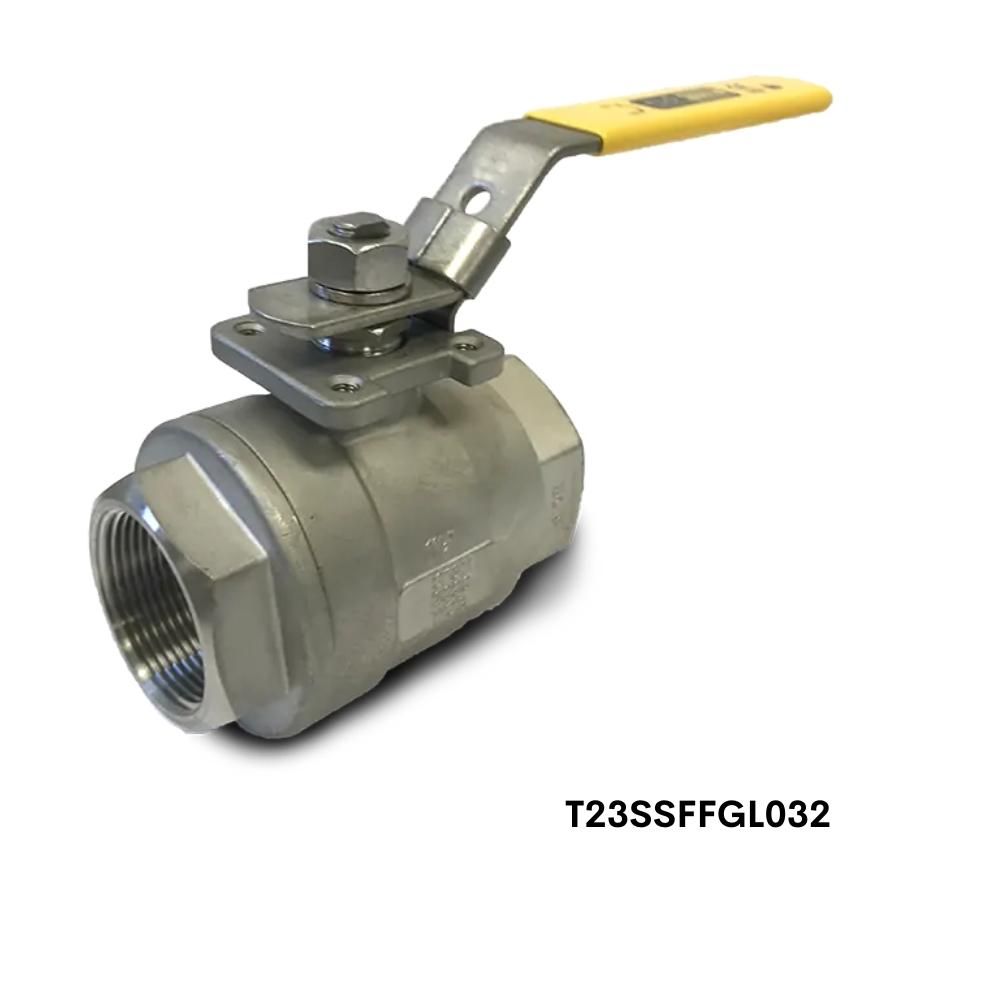

T23-SS-FFG-L-032 Flo-Tite 1-1/4" Stainless Steel Threaded Ball Valve, Fusion T23

The Flo-Tite T23 is designed as a split body, two-piece construction, to allow ease of access for maintenance of the valve ball and seat without special tools. This line of valves utilizes the “free-floating” ball principle. The ball is not fixed but is free to move with the line pressure. As a result, these valves are capable of tight shut-off with the flow in either direction or dead-ended, regardless of the position of the valve in the line. The downstream seat, which is opposite the pressurized side, of a closed valve, must carry the load exerted by the line pressure on the ball, while the upstream seat is subject to little load or wear. For this reason, it is sometimes possible to increase useful seat life by turning the valve end-for-end in the pipeline.

Design Features:

• ISO Automation Pad
• Anti-Static Grounding
• Adjustable Stem Packing
• Supertek Seating
• Safety Locking Handles
• Quality Investment Castings Foundry Heat for Full Traceability
• Metal Name Plates for Ease of Identifying Soft Parts
• API 608
• Fire Safe API 607-5 Certified
• NACE-MR-0175
• CE Marking
• Vacuum Service to 20 Microns
• NPT Connection ANSI B1-20-1
• Shell Wall Testing to 3000 PSI
• Pressure Balanced Ball
• Corrosion Resistant Black Phosphate Coating
• Blowout-Proof Stem

Steam Rated:

• T23 150 WSP

Models:

• T23 2-Piece Design

Full Port:

• 1/4" to 2" 2000 WOG
• 2-1/2" to 4" 1500 WOG
