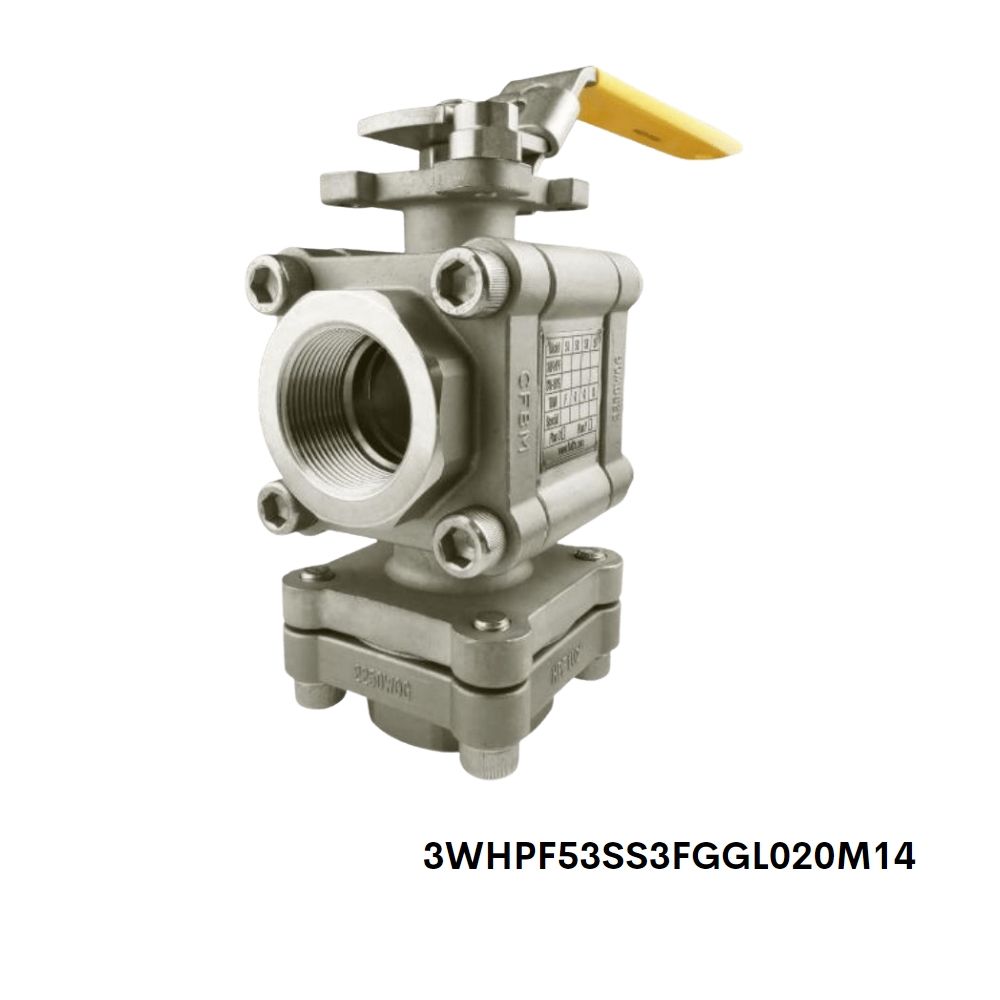

3W-HPF53-SS-3-FGFG-L-020-M14 Flo-Tite 3/4" Stainless Steel Multi-Port Ball Valves, Tri-Pro Series, Bottom Flow 3W HPF/HPS

The Flo-Tite Tri-Pro Series is designed as a split body, three-piece construction, to allow ease of access for maintenance of the valve ball and seat without special tools. This line of valves utilizes the "free floating" ball principle. The ball is not fixed but is free to move with the line pressure. As a result, these valves are capable of tight shut-off with the flow in either direction or dead-ended, regardless of the position of the valve in the line. The downstream seat, which is opposite the pressurized side, of a closed valve, must carry the load exerted by the line pressure on the ball, while the upstream seat is subject to little load or wear. For this reason, it is sometimes possible to increase useful seat life by turning the valve end-for-end in the pipeline.

Non-Transflow Design

Flow can't occur across the outlets during position change, therefore there will be very little mixing of products. The valve requires 180° rotation, with line flow shut off at the inlet (bottom port) at 90°rotation, and full diverter flow resumed to the other outlet port at 180° rotation.

Flo-Tite's Bottom Flow Series

Provides engineers greater design flexibility, making the Flo-Tite valve a valuable choice for a multitude of applications.

Materials & Ends:

• Stainless or Carbon Steel NPT, SW or BW
• Class 600 Flanged Ends
• Weld End Type Valves can be welded without disassembly
• Optional: SS Body with Carbon Steel End Connections
